Short Wave Infrared Module




Short Wave Infrared Module

  • Kerone infrared modules are the ideal solution for the application of infrared heat technology.

  • They save the user design costs and time and are substantially less expensive than the complete infrared systems.

  • They are complete and ready for the operation.


  • This provides advantages for both the, user while installing in to the existing systems and for the planning/ project engineers.


  • Infrared modules can be individually regulated, controlled and ventilated.


  • Because of its modular construction it is possible to make the heating panels of practically any size with heaters length up to 40

Applications :-

  • Curing of paint
  • Powder coating
  • Lacquers Drying
  • Printing ink
  • Drying glaze on Ceramic Tiles
  • Drying Gumming Sheets
  • Drying Adhesives Tapes
  • Latex paper
  • Textile
  • Car body works

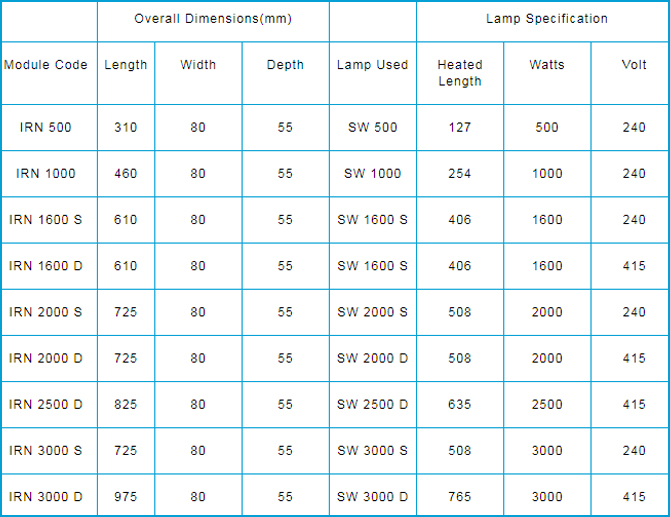

Overall Dimensions(mm)



Lamp Specification

Module Code

Length

Width

Depth

Lamp Used

Heated Length

Watts

Volt

IRN 500

310

80

55

SW 500

127

500

240

IRN 1000

460

80

55

SW 1000

254

1000

240

IRN 1600 S

610

80

55

SW 1600 S

406

1600

240

IRN 1600 D

610

80

55

SW 1600 S

406

1600

415

IRN 2000 S

725

80

55

SW 2000 S

508

2000

240

IRN 2000 D

725

80

55

SW 2000 D

508

2000

415

IRN 2500 D

825

80

55

SW 2500 D

635

2500

415

IRN 3000 S

725

80

55

SW 3000 S

508

3000

240

IRN 3000 D

975

80

55

SW 3000 D

765

3000

415
