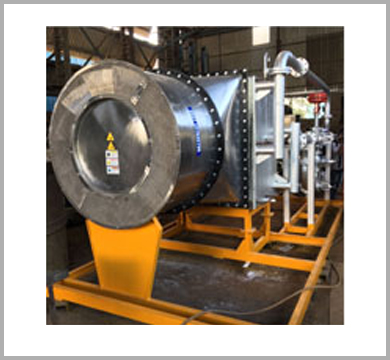

Fuel Fired Heating System

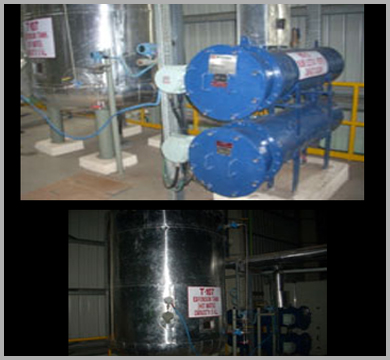

Hot Water Heating System

Steam / Thermal / Fluid

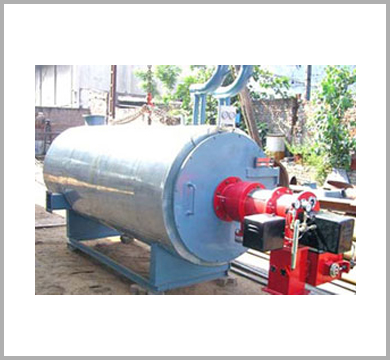

Gas Fired Hot Water Generators

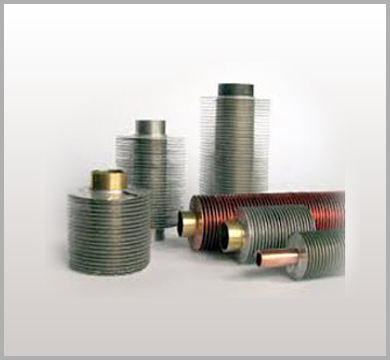

Steam Coils

Standard Steam Coils are designed for medium temperature applications where the entering temperature is 55 degrees or higher. Our coils can be designed for various steam pressures with pitched-in casing options for quick condensate removal.

Non-Freeze stream coils are designed for low temperature applications with entering air temps of 55 degrees or less. Design and production is completed with condensation removal as a high priority. These coils are designed with one header, a tube-within-a-tube configuration, and baffles which direct the steam through the inner tube allowing condensation to be evacuated through the outer tube.

Opposite end configurations are available for both standard steam and steam distribution coils. We can provide the proper coil for any piping configuration. These coils do not require a tube-within-a-tube design.

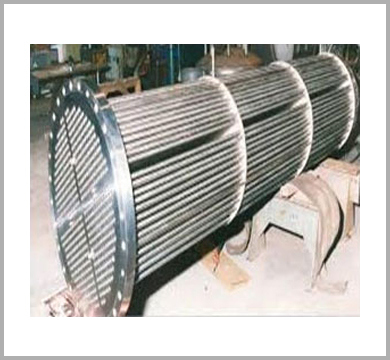

Heat Exchanger

Kerone has been leader in the shell and tube Heat exchanger industry. During this time we have Designed and manufactured more then 1000 Heat Exchangers for Various industries like: Nuclear power Corporation, oil and gas plants, Fertilizer, petrochemical, chemical, pharmaceutical, cement, ceramic, and pulp paper. Our Strength lies in our focus, our experience and our people. Since its inception has focused exclusively on Shell and tube type Heat exchanger. Doing this has produced our company and group of people uniquely qualified in solving Tough problems in this segment.

Our highest priority is always on quality Manufacturing. We believe in giving best quality product to our customers. Kerone can also design and manufacture products based on the requirements of customers, Thanks to the scientific design philosophy, the creative spirit and the meticulous research Department, which enables the company to Deliver more and more new products.Our highest priority is always on quality Manufacturing.

Pressure Vessels

Kerone has won a reputation for impeccable quality and total reliability in the design and manufacture of pressure vessels, Columns and Shell & Tube Heat Exchangers, These Equipments are designed by experienced staff using latest software and as per international standards like ASME, PD 5500, Rules 1981, IBR (Indian Boiler Regulation 1950), API 650 or as per customer requirement.

Gas Fired Conveyer Ovens

We can also make Gas Fired Conveyer Ovens

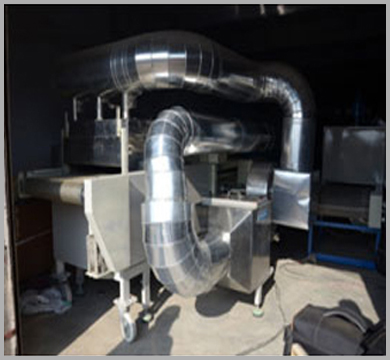

Steam Conveyer Ovens

Kerone’s conveyor drying uses a perforated belt to transfer feed materials through the dryer. Heated air is either passed under and through, or over and through the belt and product bed before being reheated and re-circulated. Units are normally multi zoned and may have differing airflow's in successive zones. Additionally each zone may use a different temperature profile and control. Saturated or close to saturated air is exhausted from the dryer via a central exhaust duct.

Conveyor dryers may be multi pass units, in which the feed is transferred from one belt to another belt below it by gravity. These dryers are usually two or three pass machines. Additionally certain conveyor dryers, such as those used in vegetable dehydration have multiple belts in line, and the feed is transferred from one belt to another.

Each unit of Kerone is specifically designed for the customer's process and can include:

  • Multiple heat zones
  • Extended loading and unloading zones
  • Special belt construction or attachments
  • Cooling zone to reduce part temperature
