High Performance Infrared Heaters

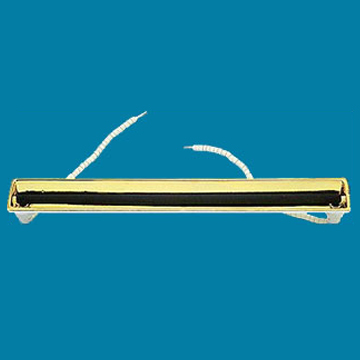

High Performance Infrared Heaters radiators are ceramic infrared rod radiators, which can be used for operating temperatures up to 1000° C and surface rating up to 87 kw/m2.

This series radiators have a gold-plated ceramic parabolic reflector and transfer up to 80% of the energy supplied as infrared radiation to the material to be heated.

In this way, this radiators allow material temperatures of up to 700° C or high through speeds. The typical operating temperature of 1000° C is reached in less than one minute.

High performance radiators are therefore particularly suitable for use in plant construction in which special solution have to be drawn up for the customer’s specific needs and for applications requiring high outputs. This radiators are available in tow designs with 375w/115v and 750w/ 230v.
